Mastering BPMN isn’t just about memorizing the symbols or understanding how to use the tools. The real challenge lies in applying the language effectively to create clear, actionable, and useful process models. Whether you’re new to BPMN or have been modeling workflows for years, it’s easy to fall into common traps that can undermine the quality of your diagrams. Today, we’re going to explore three of the most frequent mistakes made in BPMN modeling—and more importantly, how you can avoid them.

1. Overcomplicating the Model

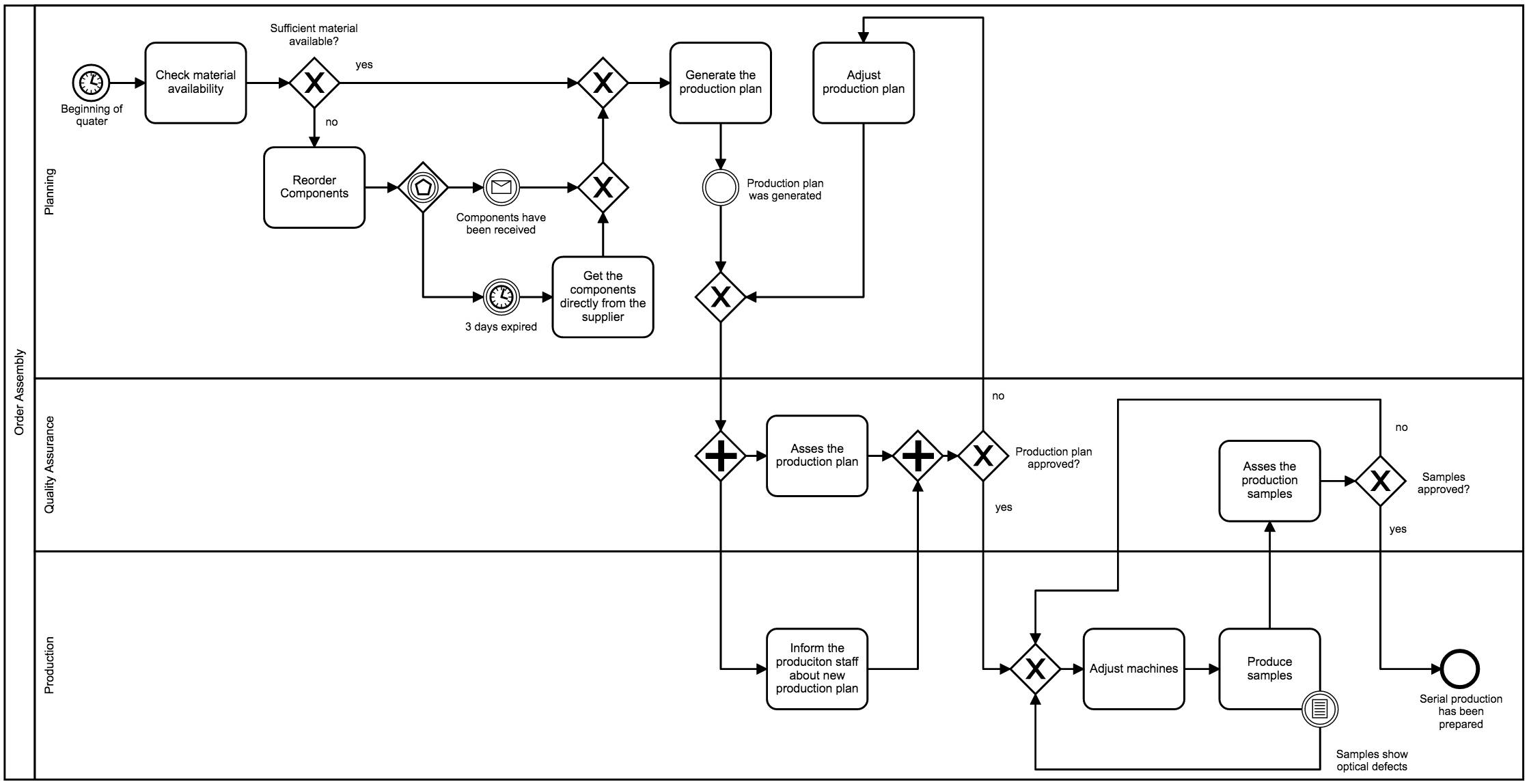

The Problem: One of the most common mistakes in BPMN modeling is trying to capture every tiny detail of a process in a single diagram. While the intention is often to create a comprehensive view, the result can be overwhelming and difficult to understand. Stakeholders looking at the model might find themselves lost in a maze of events, tasks, and flows.

Why It Happens: Overcomplication often stems from a misunderstanding of the diagram’s purpose. A BPMN diagram is not meant to serve as a full instruction manual for every possible nuance of a process. Instead, it’s a high-level map designed to communicate the essence of the workflow clearly.

How to Avoid It: Focus on simplicity and clarity. Ask yourself these questions: - What is the primary goal of this diagram? - Who will be using it, and what level of detail do they need? - Can I group tasks into subprocesses to reduce clutter?

By keeping the audience and purpose in mind, you can ensure that your model remains useful and accessible.

2. Forgetting Gateways

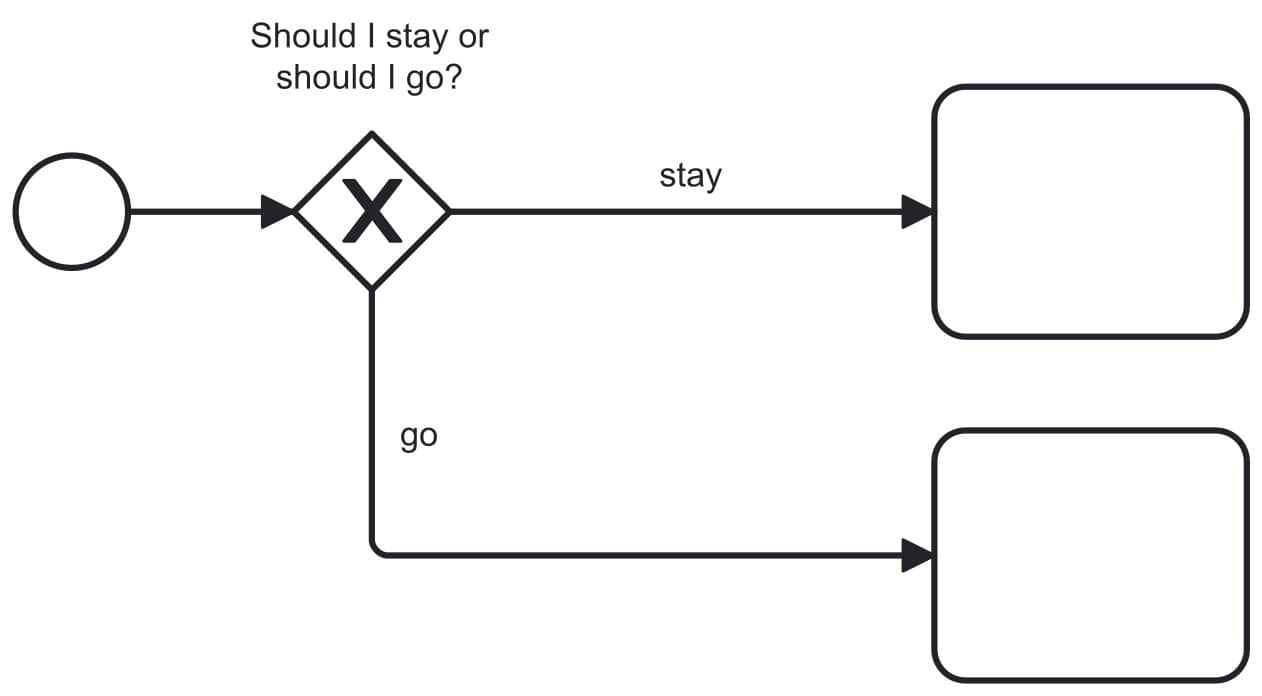

The Problem: Gateways are a critical component of BPMN, yet they are often underutilized or misused. A common mistake is failing to include gateways where decision points occur, leading to confusion about how different paths in the process are determined.

Why It Happens: Modelers sometimes avoid gateways because they feel intuitive decisions don’t need to be explicitly modeled. Alternatively, they might not fully understand the types of gateways available and their proper usage.

How to Avoid It: Take time to learn about the various types of BPMN gateways: - Exclusive Gateway (XOR): Use when only one path can be followed based on conditions. - Inclusive Gateway (OR): Use when multiple paths can be followed simultaneously, depending on conditions. - Parallel Gateway (AND): Use when all paths should be executed in parallel.

By consciously placing gateways at decision points, you make your diagrams more accurate and easier to follow. It also reduces ambiguity for stakeholders trying to interpret the flow.

3. Ignoring End Events

.

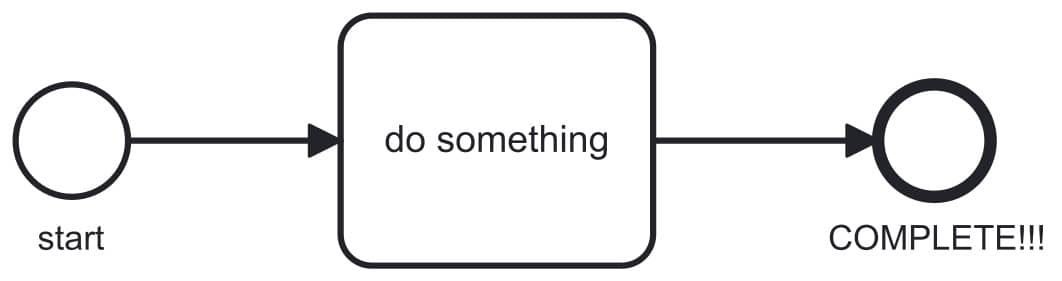

The Problem: Every BPMN diagram should have a clear end, yet many models leave processes hanging without a defined endpoint. This lack of closure makes it unclear when and how a process concludes, leaving room for misinterpretation.

Why It Happens: Modelers might assume the end of a process is implied or that the audience will “just know” when the process stops. Alternatively, they might simply overlook the importance of explicitly marking the end.

How to Avoid It: Always include at least one end event in your BPMN diagram. End events signal the completion of a process and provide clarity on what the final outcome should be. If your process has multiple possible outcomes, use multiple end events to represent each scenario explicitly.

By including well-defined end events, you create a sense of closure and ensure your diagrams provide a complete picture.

💡 Quick Tips for Better BPMN Diagrams

• Test for Clarity: Once your diagram is complete, ask a colleague or stakeholder unfamiliar with the process to review it. Can they understand it at a glance? If not, simplify.
• Use Subprocesses: Break down complex workflows into manageable chunks by creating subprocesses. This reduces visual clutter and makes your diagrams easier to navigate.
• Leverage Annotations: Use annotations to clarify parts of the process that might not be immediately obvious. These notes can provide context without overwhelming the diagram.
• Iterate and Improve: Your first draft doesn’t have to be perfect. Treat BPMN diagrams as living documents that can evolve as you gather feedback.

Final Thoughts

Creating effective BPMN diagrams is both an art and a science. By avoiding these common mistakes—overcomplicating the model, forgetting gateways, and ignoring end events—you can ensure your diagrams are clear, concise, and actionable. Remember, the goal of BPMN is not just to document processes but to make them understandable and usable for everyone involved.

Ready to take your BPMN skills to the next level? Check out our latest tutorials and resources to keep growing and refining your expertise. Happy modeling!
